Part 1 of 4 · Morning

Telemetry and queries

Find the broken peer. Bridge metric → log. Build the baseline.

Your senior buddy walks you through the lab's telemetry shape — what normal looks like, where the broken things hide, how to bridge a metric anomaly to the log line that explains it. By the end you have a baseline you can compare every future triage against.

~75 minutes PromQL + LogQL from scratch Live data, real-shape telemetry

It's Monday morning. You just rotated onto the on-call team for your company's network observability platform and today is your first deep day. You've got coffee. Your senior buddy is leaning on the desk next to you, laptop open. They're going to walk you through the lab over the next 75 minutes — what "normal" looks like, where the broken things hide, how to bridge from a metric anomaly to a log line that explains it. From tomorrow you'll be primary on the rotation, so today the goal is simple: build a baseline mental model of this network so every future triage has something to compare against.

Write PromQL and LogQL by hand against the running lab. Discover the metric schema, find the deliberately broken BGP peer with a single intent-vs-reality query, and correlate metrics to logs to explain why a session is down. By the end you'll know enough query syntax to read any dashboard in this workshop.

This part is the longest of the day on purpose — every later part depends on you being comfortable in the query bar.

Setup check

Your senior already has Grafana up on their screen. They've reset the lab to known-good baseline and confirmed every row says ok. Your turn.

If this is your first time bringing up the lab solo, run the four-command Bring it up sequence from the workshop README first (uv sync --all-packages → nobs setup → nobs autocon5 up → nobs autocon5 load-infrahub) — nobs autocon5 up alone doesn't seed Infrahub, and reset will fail with SchemaNotFoundError until load-infrahub has run once.

In a terminal:

nobs autocon5 reset
nobs autocon5 status

reset is safe to run repeatedly — it clears any leftover maintenance flags, expires any silences from a prior workshop run, removes any cascade scenarios still hanging around, and restarts the log shipper if it has gone quiet. Safe to run at the start of every part. status then confirms every row reports ok. If prometheus, loki, or sonda is anything else, flag it before continuing — your senior wants to know about a degraded stack before you lean on it.

Open Grafana at http://localhost:3000 (login admin / admin unless you changed .env). On the very first login you'll see two pop-ups — click Skip on the "change password" prompt and the × on the "Grafana Assistant is now available" what's-new modal. Both are unrelated to the workshop. Then click the compass icon in the left rail to open Explore. The datasource picker at the top is how you switch between Prometheus and Loki. You'll bounce between them throughout this part.

Open the Workshop Home dashboard once (/d/workshop-home) so you've seen the stat row — Devices, Interfaces, Firing alerts, Log lines (5m). Those four numbers are your sanity check throughout the workshop.

The exercises

Metrics — PromQL

Your senior taps the screen. "Before we touch anything else this morning, you need to know what's even talking to us — and what shape it arrives in. Two devices, two telemetry dialects on the wire, and yet every query you write today is going to treat them as one shape. Let's start at the source, before any of it is cleaned up. This is the part that bites every operator who jumps from one vendor's network to another."

1. Normalization — two raw shapes, one shared schema

The two devices speak different protocols at the source:

  • srl1 emits gNMI — that's the telemetry shape SR Linux puts on the wire natively. Field names like srl_interface_oper_state, tags like source. Telegraf-srl1 scrapes this raw shape, renames srl_* to canonical (interface_*, bgp_*) and source to device. Out the other side: the shared schema this workshop's dashboards and alerts speak.
  • srl2 emits SNMP — the classic shape from IF-MIB / BGP4-MIB. Field names like ifOperStatus, ifHCInOctets; tags like agent_host, ifDescr. Telegraf-srl2 scrapes the raw SNMP shape and renames every field and every tag to the same canonical schema. Out the other side: byte-for-byte identical to what srl1 produces.

Both raw shapes live on sonda-server (the lab's synthetic-telemetry runtime). Each Telegraf scrapes its device's per-scenario /metrics endpoints on a 10-second cadence — same scrape pattern Prometheus would use against real exporters in production.

See the raw shape, before Telegraf touches it

Your senior pulls up a terminal. "You don't have to take the bullet list on faith. Each layer of the pipeline has its own URL — just click them and see the same fact in three different shapes."

The pipeline has three layers you can inspect directly from your browser:

  1. Raw gNMI from srl1 (sonda-server, before Telegraf): http://localhost:8085/metrics?label=source:srl1

    Look for srl_* metric names and the source="srl1" tag. This is what an SR Linux device emits on its gNMI stream. For example:

    srl_interface_oper_state{collection_type="gnmi",name="ethernet-1/1",intf_role="peer",source="srl1"} 1

    The pack workshops/autocon5/sonda/catalog/srlinux-gnmi-interfaces-raw.yaml lists every metric in this shape.

  2. Raw SNMP from srl2 (sonda-server, before Telegraf): http://localhost:8085/metrics?label=agent_host:srl2

    Different shape entirely — IF-MIB names (ifOperStatus, ifHCInOctets) and the agent_host="srl2" tag. For example:

    ifOperStatus{agent_host="srl2",collection_type="snmp",ifDescr="ethernet-1/1"} 1

    Same logical concept (interface operational state) as srl1's srl_interface_oper_state, completely different field name, completely different label keys. Pack: workshops/autocon5/sonda/catalog/cisco-snmp-interfaces-raw.yaml.

  3. Telegraf-srl1's normalized output (after gNMI → canonical rename): http://localhost:9005/metrics

    Now srl_interface_oper_state is plain interface_oper_state. The source="srl1" tag is now device="srl1". Same data, canonical shape.

  4. Telegraf-srl2's normalized output (after SNMP → canonical rename): http://localhost:9006/metrics

    ifOperStatus is now also interface_oper_state. The agent_host="srl2" tag is now device="srl2". Identical structure to telegraf-srl1's output — except for one label we keep on purpose: collection_type=gnmi vs collection_type=snmp, so you can debug which pipeline a sample came from.

  5. Final view in Prometheus: http://localhost:9090/graph?g0.expr=interface_oper_state&g0.tab=1

    A single PromQL query for interface_oper_state returns rows from both devices in the same shape. The vendor difference is invisible at this layer.

Why the sonda /metrics endpoint is safe for two readers at once

sonda-server exposes two shapes of metric endpoint: the aggregate /metrics?label=key:value you just used, and a per-scenario /scenarios/{id}/metrics for a single scenario by ID.

  • The aggregate endpoint is snapshot-style: each scrape gets a consistent picture without consuming anything. Telegraf reads it every 10 seconds; you can read it concurrently from your browser; both see the same bytes.
  • The per-scenario endpoint is drain-on-read: each read consumes the scenario's emission buffer. Telegraf doesn't use this endpoint precisely because two consumers can't share a drain-on-read buffer without racing.

That difference is the production scrape architecture in miniature: single-consumer endpoints drain, multi-consumer endpoints snapshot. The aggregate endpoint is what Telegraf actually scrapes; the per-scenario endpoint is there for the scenario's own tooling.

Now flip to the Prometheus query browser and look at the same data after all the renames:

interface_oper_state{intf_role="peer"}

Six rows, all interface_oper_state{device=..., name=..., intf_role="peer", ...}. Same metric name, same label keys, regardless of whether the upstream was srl_interface_oper_state{source=srl1} or ifOperStatus{agent_host=srl2}. That's the rename rules in telegraf-{srl1,srl2}.conf.toml doing the lift.

But look closer at the filter you just ran. interface_oper_state and device are renames — the raw stream already carried that fact (srl_interface_oper_state, source=srl1), Telegraf just relabelled it to the canonical schema. intf_role="peer", though, is a label that did not exist on the wire at all. No SR Linux gNMI message and no SNMP MIB emits an "interface role." Telegraf derives it from the interface name with a regex processor (telegraf-{srl1,srl2}.conf.toml, the [[processors.regex]] block with result_key = "intf_role"). That's a second, distinct operation:

  • Normalization — renaming what's already there to a shared shape. srl_interface_oper_state → interface_oper_state, source → device. No new facts, just a common vocabulary. Lossless and mechanical.
  • Enrichment — adding context the device never sent. intf_role="peer" is inferred here from the name; in a real fleet it more often comes from a source of truth (which interface is a peer link, which site a device sits in, who owns it). New facts, joined in at ingest.

You filter on both kinds of label the same way in PromQL — {device="srl1"} (normalized) and {intf_role="peer"} (enriched) read identically. The difference is in where the value came from: one was renamed off the wire, the other was attached by the pipeline. Keep the two straight, because they fail differently — a broken rename means a vendor's data goes missing from a query; broken enrichment means the data is all there but you can't slice it by the business context you expected. (Part 3 leans hard on enrichment: alerts get routed and annotated using exactly this kind of source-of-truth context.)

The one label that records which raw shape a series came from is collection_type — gnmi for srl1, snmp for srl2. Click into a srl1 result and a srl2 result and compare the full label set — device, name, intf_role, collection_type. The only meaningful difference is the collection_type value. Everything else lines up: same metric name, same label keys, three peer interfaces on each side. The same fact two vendor dialects were carrying, now expressed once.

That alignment is what "normalization" actually buys you:

  • The query layer doesn't see the dialects. interface_oper_state{device="srl1"} and interface_oper_state{device="srl2"} return rows in the same shape, even though one came in as gNMI and the other as SNMP.
  • Real fleets are mixed. Nokia SR Linux via gNMI, Cisco IOS-XR via Model-Driven Telemetry, Juniper via OpenConfig, legacy boxes via SNMP — each speaks its own dialect. Without normalization, every dashboard, alert rule, and runbook fragments per vendor. With it, the query layer doesn't see the dialects at all.
  • Telegraf is doing the renaming work for both devices in this lab. In production it might be Telegraf, OpenTelemetry collectors, custom processors — different tools, same job.

Your senior closes the laptop slightly. "You'll meet engineers who hate normalization because it abstracts away vendor specifics. They're not wrong about the cost — but the cost of not normalizing, in this lab and in production, is that every alert rule has to be written six times and every dashboard has six panels for the same thing. Pick your trade. We've picked normalization."

Stop and notice. The collection_type label is for inspecting the normalization itself: "which raw shape did this sample come from, is that path healthy?" It's not for branching your query logic. If you write interface_oper_state{collection_type="gnmi"} into a dashboard, you've narrowed to one vendor — useful for debugging that pipeline, but you'll miss every device whose data arrives via any other protocol. Default to collection-type-agnostic queries; reach for the label when you're debugging the normalization, not the network.

2. Discover what's in the lab

You've watched the metric get built — raw dialects in, one canonical shape out. Now work with the finished article. Switch to Grafana Explore, pick the prometheus datasource, and run the bare metric with no filter:

interface_oper_state

Click Run query. You should see exactly 6 results — three interfaces per device, two devices, both collection types, all in the same shape. That one query returning rows for both vendors is the normalization paying off end-to-end: a dashboard panel querying interface_oper_state{device="$device"} doesn't care which protocol delivered the data — it asks for the shared name and gets it.

Click any row's labels and the inspector shows the full label set:

  • device — srl1 or srl2
  • name — interface name (ethernet-1/1, ethernet-1/10, ethernet-1/11)
  • intf_role — peer for the three real ones
  • collection_type — gnmi (srl1) or snmp (srl2)
  • pipeline — telegraf (both devices route through Telegraf today)
  • host, instance, job — where Prometheus scraped from

Stop and notice. The metric name tells you what (operational state of an interface). The labels tell you which one and where it came from — some renamed off the wire, some enriched in, as you just traced. Every query you write from now on is a filter or aggregation on labels.

Now try an aggregation. How many peer interfaces are operationally up per device?

count by (device) (interface_oper_state{intf_role="peer"} == 1)

== 1 filters to only up interfaces (1 = UP, 2 = DOWN). count by (device) collapses every label except device — list the labels you want to keep and everything else flattens. You should see srl1 returning 2 and srl2 returning 2 — two healthy peer interfaces per device, with one down on each.

3. Rate of change on a counter

"Counters in Prometheus only ever go up. Reading them raw is useless. Show me the rate."

rate(interface_in_octets{device="srl1"}[1m])

In the panel options on the right of Explore, switch from Table to Time series. You should see three lines, one per srl1 interface. The two healthy ones (ethernet-1/1, ethernet-1/10) hover around ~12,500 bytes/sec — that's the synthetic emitter's step_size of 125 KB per 10s. ethernet-1/11 (the broken interface) sits at 0 bytes/sec — its counter doesn't tick because the interface is operationally down.

Now widen the window:

rate(interface_in_octets{device="srl1"}[5m])

The lines smooth out. The window inside the brackets is how much history rate() averages over — short windows are twitchy, long windows hide spikes.

"Throw in srl2 too — same query, no device filter."

rate(interface_in_octets[5m])

Six lines now. srl2's healthy interfaces hit ~12,500 bytes/sec, the broken ethernet-1/11 flatlines at zero — same shape as srl1. Same query, same units, both vendor pipelines, no special-casing.

Now aggregate. What is the total inbound throughput per device?

sum by (device) (rate(interface_in_octets{name!~"mgmt0.*"}[5m])) * 8

name!~"mgmt0.*" excludes management interfaces. sum by (device) adds all interface rates together per device. * 8 converts bytes/sec to bits/sec. Two rows — one per device, total inbound throughput.

Stop and notice. Anything that ends in _octets, _packets, _total, _bytes is a counter. Wrap it in rate() or increase(). Plotting a raw counter gives you a saw-tooth or a monotonic line that tells you nothing operationally. The window inside rate() controls smoothness — short windows are reactive, long windows hide spikes.

4. Intent-vs-reality — interface metrics

Your senior gestures at the screen. "You've got the building blocks. Now answer an operational question: which peer interfaces are supposed to be up but aren't? You have everything you need — two metrics, one join."

Two metrics encode the two sides of intent and reality:

  • interface_admin_state — what the operator configured (1 = enabled)
  • interface_oper_state — what the network is actually doing (1 = up, 2 = down)

Start with each side in isolation. First, which peer interfaces are admin-enabled?

interface_admin_state{intf_role="peer"} == 1

Now, which peer interfaces are operationally down?

interface_oper_state{intf_role="peer"} != 1

Join them — admin-enabled interfaces where oper state is not up:

interface_admin_state{intf_role="peer"} == 1
  and on (device, name)
interface_oper_state{intf_role="peer"} != 1

You should get one row per device — ethernet-1/11 on each, the deliberately broken interface.

Your senior nods. "and on (device, name) joins only on the labels you name — device and interface name. Left side is intent (admin says enabled). Right side is reality (oper says not up). The result keeps the left side's value. Read it as: give me all admin-enabled peer interfaces, but only those where the same device + interface is also not operationally up. That's intent-vs-reality in one expression."

Stop and notice. The pattern has three parts: a filter on the intent side, a filter on the reality side, and and on (...) naming the labels they share. The left side's value is preserved in the result. This shape generalises to any metric pair that encodes "what should be" and "what is" — the join clause is what makes it precise.

5. Find the broken peer — BGP

The same normalization idea applies to BGP session state. bgp_oper_state and bgp_admin_state are collected from both devices — one via gNMI, one via SNMP — and normalized into the same metric names with the same label set. That matters here because the on-call alert covers the whole fleet: if the query had to branch by vendor, a broken peer on a device using the other collection path would silently slip through.

Your senior swivels toward you. "Same pattern. Same join operator. Different metric pair. Apply it to BGP."

bgp_oper_state != 1
  and on (device, peer_address)
bgp_admin_state == 1

You should get exactly two rows:

  • device=srl1, peer_address=10.1.99.2 — bgp_oper_state value is 5 (active, retrying)
  • device=srl2, peer_address=10.1.11.1 — bgp_oper_state value is 5

Your senior leans back in their chair. "You just found two peers that have been in mismatch for weeks. Each has a BgpSessionNotUp alert that's been firing the whole time and nobody's owned it. Welcome to on-call. We're not going to fix them today; we're going to learn from them. The shape of the query you just ran is the shape of the alert that's been paging the rotation."

Stop and notice. The only difference from exercise 4 is the metric names and the join labels — and on (device, peer_address) instead of and on (device, name). The intent-vs-reality pattern is identical. This single query is the core of how the BgpSessionNotUp alert fires later in Part 3 — same shape, just with for: 30s wrapped around it.

Recording rules — composed metrics

6. Query a pre-computed metric

Your senior opens a file. "Every query you just wrote in Explore can be baked into Prometheus as a recording rule. Instead of recomputing it on every dashboard load, Prometheus evaluates it on a schedule and stores the result as a new metric. Dashboards and alerts reference the pre-computed name — fast, consistent, one definition."

A recording rule is Prometheus evaluating a PromQL expression on a fixed interval (typically every 15–60 seconds) and writing the result back as a new, named metric. You then query that name instead of the full expression. Three reasons this matters in practice:

  • Dashboards stay fast. A sum by (device) (rate(...)[5m]) over a large fleet scans thousands of raw samples on every panel refresh. The recording rule pays that cost once per interval; the dashboard reads a single pre-computed row.
  • Alerts are consistent. When an alert rule and a dashboard panel reference the same recording rule name, they're looking at the same computed value — no drift from re-evaluating the same expression independently with slightly different timing.
  • Complex expressions get a stable name. The intent-vs-reality join you just wrote is seven lines of PromQL. Wrapping it in a recording rule gives it a short, searchable name that runbooks and incident comments can reference.

The naming convention is <aggregation_labels>:<metric_name>:<time_window>. This lab ships two traffic recording rules and one that fans a Loki-derived UPDOWN rate back into Prometheus:

groups:
  - name: network_traffic_overview
    rules:
      - record: device:network_traffic_in_bps:rate_2m
        expr: sum(rate(interface_in_octets[2m])) by (device) * 8
      - record: device:network_traffic_out_bps:rate_2m
        expr: sum(rate(interface_out_octets[2m])) by (device) * 8

  - name: interface_updown_events
    rules:
      - record: device:interface_updown_rate:2m
        expr: events:interface_updown_rate:2m or (sum by (device) (interface_admin_state) * 0)

Try querying the pre-computed metric directly in Explore:

device:network_traffic_in_bps:rate_2m

Two rows — one per device, total inbound throughput in bits/sec, already computed. This is the same result you got in exercise 3 with sum by (device) (rate(interface_in_octets{name!~"mgmt0.*"}[5m])) * 8 — but the PromQL complexity is gone from the query site. No rate(), no sum by needed at query time. The dashboard panel that shows device traffic references this name, not the raw expression.

Stop and notice. A recording rule is just a query that Prometheus runs on a schedule and stores. The result is a first-class metric — you can filter it, alert on it, and reference it from other rules. The naming convention is a readability contract, not a technical requirement: aggregation:source_metric:window tells you at a glance what the number represents and over what window it was computed.

Alerts

7. Wrap a query in an alert rule

Your senior closes the rules file. "A query answers a question. An alert is the same query with one addition: if the answer is true, act. That's all an alert rule is."

A Prometheus alert rule is a PromQL expression evaluated on a schedule — the same way a recording rule is — but instead of storing the result as a metric, Prometheus watches whether the expression returns any rows. If it does, the alert is firing; if it returns nothing, it's inactive. When an alert fires, Prometheus forwards it to Alertmanager, which handles routing, deduplication, and silencing before sending a notification to the on-call channel.

Two fields shape how the alert behaves in practice:

  • for: — how long the condition must stay true before the alert actually fires. Without it, a single bad scrape triggers a page. With for: 2m, transient flaps and brief collection gaps are silently ignored.
  • labels: / annotations: — labels route the alert (Alertmanager uses them to decide who gets paged and how); annotations carry human-readable context that lands in the notification itself.

You already have the PromQL for this — the intent-vs-reality query from exercise 4. Wrapping it in an alert rule is the mechanical step that turns a query you ran once in Explore into something that watches the network continuously.

The expression

Start from the intent-vs-reality query you already know. The operational question is: "Alert when a peer interface is configured UP but operationally DOWN."

count by (device, name) (
  (interface_admin_state{intf_role="peer"} == 1)
  and on (device, name)
  (interface_oper_state{intf_role="peer"} == 2)
) > 0

> 0 is the firing condition — the alert fires whenever at least one interface matches. The count by (device, name) keeps the device and name labels in the alert so the notification knows which interface.

The rule

Wrap the expression in an alert rule and add three things that make it operationally useful:

groups:
  - name: interface_intent_mismatch
    rules:
      - alert: InterfaceAdminUpOperDown
        expr: |
          count by (device, name) (
            (interface_admin_state{intf_role="peer"} == 1)
            and on (device, name)
            (interface_oper_state{intf_role="peer"} == 2)
          ) > 0
        for: 2m
        labels:
          severity: warning
          category: network
        annotations:
          summary: "Interface intent mismatch detected"
          description: |
            Interface {{ $labels.name }} on device {{ $labels.device }}
            is configured as UP (admin state) but is currently DOWN (oper state).

            This usually indicates a cabling, peer, or physical-layer issue.
  • for: 2m — the condition must hold for 2 minutes before the alert fires. Filters out flap noise.
  • labels: — static key-value pairs attached to the alert. severity and category are what Alertmanager routes on in Part 3.
  • annotations: — human-readable context. {{ $labels.name }} and {{ $labels.device }} are template variables that expand to the alert's label values — the notification tells you exactly which interface on which device.
Lab: see this alert in the stack

The InterfaceAdminUpOperDown alert is already loaded. The lab's deliberately broken interfaces (ethernet-1/11 on both devices) satisfy the expression right now.

  1. Prometheus — open http://localhost:9090, paste ALERTS{alertname="InterfaceAdminUpOperDown"} into the expression bar and run it. You should see one row per device with alertstate="firing". If the lab just started, wait two minutes for the for: 2m window to elapse — until then the expression returns no rows because the alert is still in its pending period. (Prefer the rendered list? The alerts page shows the same alert with its INACTIVE/PENDING/FIRING state without writing any PromQL.)

  2. Grafana Explore — the ALERTS metric exposes firing alerts as a queryable time series:

    ALERTS{alertname="InterfaceAdminUpOperDown"}

    Each row is a firing instance. The label set is the alert's labels merged with the expression's output labels — device, name, severity, category all present.

  3. Alertmanager — open http://localhost:9093 and confirm the alert arrived and was routed. In Part 3 you'll trace exactly what happens next.

Stop and notice. The alert rule you just read is the same intent-vs-reality query from exercise 4, with > 0, for:, labels:, and annotations: added. The query is the logic; everything else is operational scaffolding — how long to wait before paging, what labels to route on, what message to show on call. This is the pattern every alert in this lab follows.

Logs — LogQL

Your senior pushes back from the desk. "OK, you've got a sense of the metric shape. Now: when something looks wrong in metrics, you need to find a log line that explains it. Logs are where the why lives. Same lab, different query language. Switch the datasource."

Switch the Explore datasource to loki.

8. Stream selection

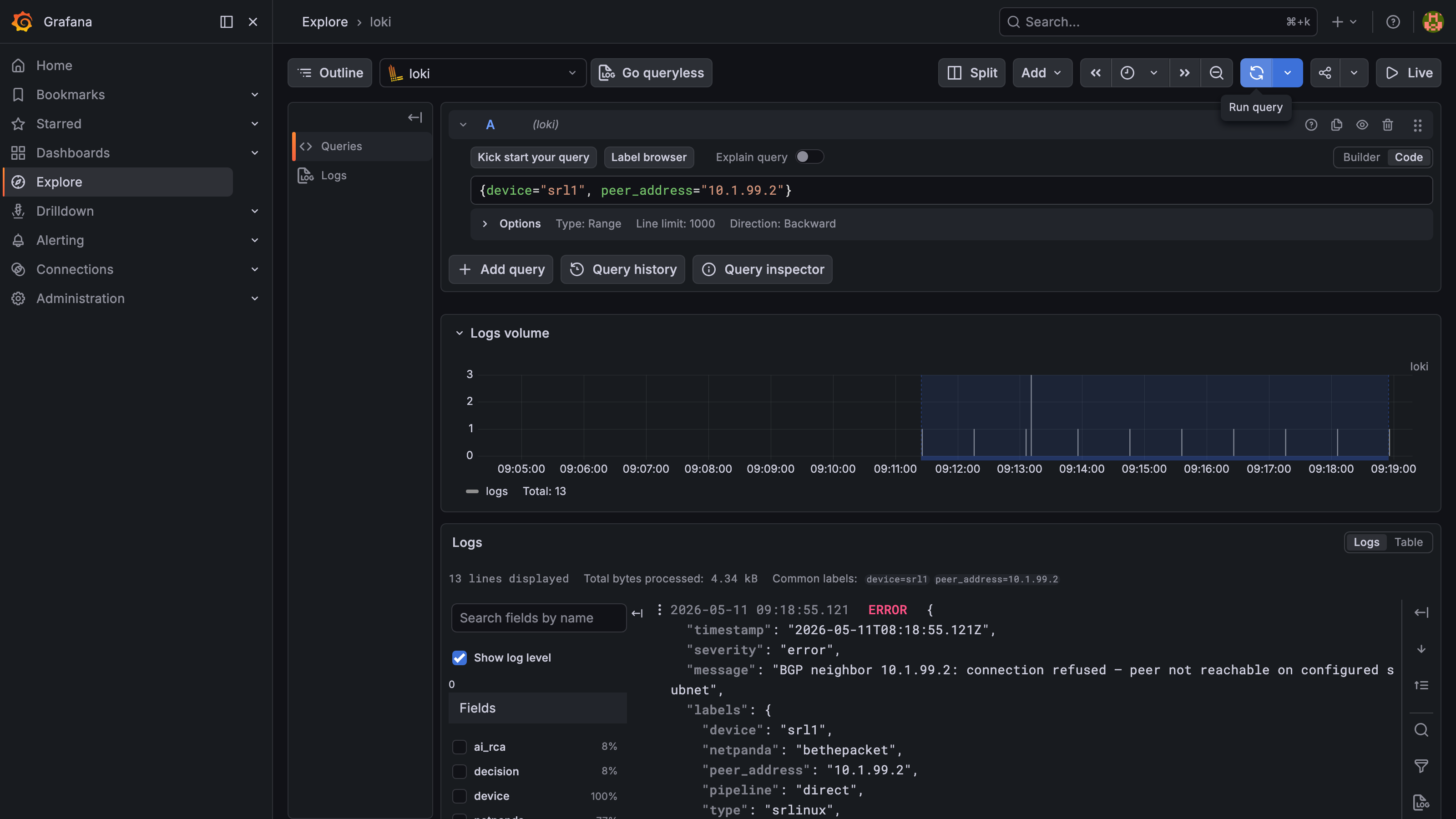

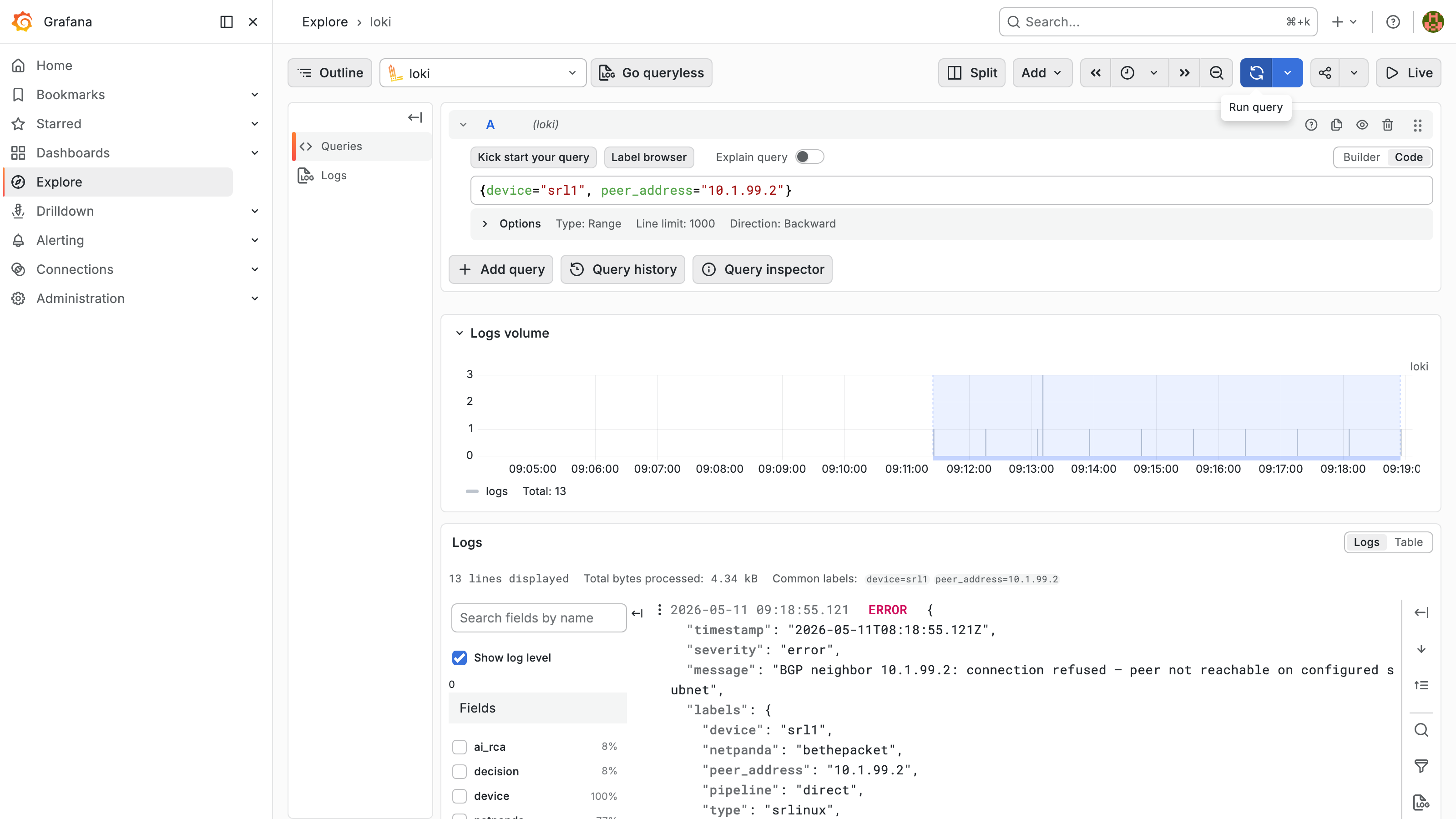

{device="srl1"}

Run it. You'll see a stream of recent log lines from srl1. The dropdown on the right lets you switch between log view and table view.

Stop and notice. Curly braces with label selectors look like Prometheus, but they pick log streams, not metric series. A LogQL query always starts with {...}. Without label selectors Loki doesn't know what to query.

9. Line filter

{device="srl1"} |~ "BGP"

|~ is regex match against the log line body. Try a few:

{device="srl1"} |~ "Interface"
{device="srl1"} != "DEBUG"

|=, !=, |~, !~ are the four line-filter operators (substring match, substring exclude, regex match, regex exclude). Stack as many as you want.

Stop and notice. Stream selectors filter which streams Loki reads. Line filters filter which lines inside those streams. Always narrow the streams first — line filters scan, stream selectors index.

10. JSON parse

Sonda emits structured logs. You can query parsed fields, not just substrings:

{device="srl1"} | json | severity="warn"

The | json stage parses each line as JSON; | severity="warn" filters on a parsed field. Try:

{device="srl1"} | json | line_format "{{.severity}} {{.message}}"

line_format is a template over parsed fields — it reshapes how each line is displayed.

Stop and notice. Structured logs let you query and reshape; unstructured logs force regex against text. The pipelines in this lab emit JSON on purpose.

11. Aggregation — log queries that produce metrics

Aggregating logs over time turns a log query into a metric:

sum by (device) (count_over_time({vendor_facility_process="UPDOWN"}[5m]))

Switch the panel to Time series. You should see two lines (one per device) showing UPDOWN events per 5-minute window. With the lab in steady state the count sits at a handful per device — sonda emits a slow trickle.

Stop and notice. This is the bridge between logs and alerting. Raw log lines are strings — you can search them, but you can't alert on them directly. Aggregating them over time produces a number, and a number can be compared against a threshold in an alert rule. Any LogQL aggregation query — count of error lines, rate of state changes, volume of dropped packets per device — is a candidate alert rule. Logs stop being a post-mortem tool and become part of your real-time detection layer.

Want to see the line jump now?

If you're running ahead or want to verify the query before the capstone, trigger a quick flap: nobs autocon5 flap-interface --device srl1 --interface ethernet-1/10. Within ~30 seconds the srl1 line climbs. The capstone exercise (12) drives a full cascade that will show this too — no need to run it twice.

12. Pipeline awareness on logs

The same normalization story plays out on the log side, with one important difference from metrics: logs don't go through Telegraf. Telegraf is a metrics pipeline — it scrapes and normalizes time-series samples. Logs are a different data shape (timestamped text streams), so the lab uses a dedicated log shipper instead: Vector for srl2, and a direct push path for srl1.

srl1 emits structured logs directly to Loki — that's the normalized log, pipeline=direct. srl2 emits raw RFC 5424 syslog over UDP to Vector; Vector parses the syslog, extracts SD-IDs, and rewrites them into the same label vocabulary srl1 already uses — that's the same log still being processed to become normalized, pipeline=vector.

count by (pipeline) (count_over_time({device="srl1"}[5m]))
count by (pipeline) (count_over_time({device="srl2"}[5m]))

Returns pipeline=direct and pipeline=vector respectively. Now run a query that doesn't pin the pipeline:

{vendor_facility_process="UPDOWN"}

You should see streams from both devices. The device, vendor_facility_process, interface, severity labels look identical — Vector did the work to make srl2's raw syslog land in Loki with the same shape srl1's structured logs already have. Same normalization story, log edition.

Stop and notice. Two normalization stories in this lab — collection_type=gnmi/snmp on metrics, pipeline=direct/vector on logs — but they share the same payoff: queries don't have to know which transport delivered the signal. The label that tags the source path exists for debugging the pipeline, not for branching your queries.

13. The bridge — metric to log

Your senior looks over. "This is the move that pays off most often under pressure. Find the broken thing in metrics, then jump to logs with the same labels and read the why. If you only remember one thing from this morning, remember this."

This is the payoff exercise. Use the broken-peer query from #5 to find a mismatched peer, then jump to logs to find out why.

In the prometheus datasource:

bgp_oper_state{device="srl1"} != 1
  and on (device, peer_address)
bgp_admin_state{device="srl1"} == 1

On a clean lab, this returns one row — peer_address=10.1.99.2, value 5 (active, retrying). That's the deliberately broken peer.

Seeing more than one row? Check the query type.

Grafana Explore's default is Range (plots samples over the time window). If a flap or cascade has run inside the window, peers that were briefly oper_state != 1 will appear as series even after they've recovered. Switch the Type dropdown next to the query to Instant for a "right now" snapshot — that should drop you back to one row.

Or — Prometheus is carrying stale data from a previous session

nobs autocon5 up reattaches to an existing Prometheus volume if one exists, so historical samples from earlier sessions linger. nobs autocon5 destroy && nobs autocon5 up gives a true clean slate. (nobs autocon5 reset clears scenarios and maintenance but leaves the Prometheus TSDB intact.)

Switch to the loki datasource:

{device="srl1", peer_address="10.1.99.2"}

You'll see BGP-related lines for that specific peer. Add a filter to narrow:

{device="srl1", peer_address="10.1.99.2"} |~ "BGP"

Stop and notice. Metrics told you something is wrong (admin says up, oper says down). Logs tell you why (peer didn't reply, fsm transition, whatever the message says). The labels are the same on both sides — that's what makes correlation cheap. This is the single most important pattern in the entire workshop. Every dashboard panel you'll build in Part 2, every alert path in Part 3, leans on this metric-to-log bridge.

"Same query shape works on srl2 — try it. Different peer_address, same answer-the-why pattern. The fact that one device's metric came in as gNMI and the other's came in as SNMP doesn't change the bridge query at all."

Capstone — everything at once

14. Trigger a cascade and watch metrics, logs, and alerts react

Your senior gestures at the keyboard. "You've now seen metrics, normalization, recording rules, alerts, and logs as separate concepts. This exercise puts them all on screen at the same time. One command, one cascade — you watch every layer respond in causal order."

This is the capstone exercise for Part 1. Open four browser tabs before you run anything:

Tab What to open
Metrics Grafana Explore — prometheus datasource
Logs Grafana Explore — loki datasource
Alerts Prometheus alerts
Alertmanager http://localhost:9093

Step 1 — set up your metric queries. In the metrics tab, load these four queries (use split view or separate tabs):

interface_oper_state{device="srl1", name="ethernet-1/1"}

bgp_oper_state{device="srl1", peer_address="10.1.2.2"}

bgp_prefixes_accepted{device="srl1", peer_address="10.1.2.2"}

rate(interface_in_octets{device="srl1", name="ethernet-1/1"}[1m]) * 8 / 1000

Switch all four to Time series view. Leave them running — Grafana auto-refreshes.

Step 2 — set up your log stream. In the logs tab, run:

{device="srl1", vendor_facility_process="UPDOWN"}

Switch to Live mode (the toggle in the top-right of Explore). Log lines will stream in as they arrive.

Step 3 — trigger the cascade. In a terminal:

nobs autocon5 flap-interface --device srl1 --interface ethernet-1/1

One command posts a 4-minute cascade to sonda: the interface flaps on a 30s-up / 60s-down cadence, BGP follows after a 10s hold-down, and every signal snaps back cleanly when the gate closes.

Trip just the flap, not BGP

Pass --no-cascade and only the interface metric and UPDOWN log stream fire — BGP stays clean. Useful for testing the PeerInterfaceFlapping alert without bringing a session down.

Step 4 — watch each layer respond in order.

Metrics:

  • interface_oper_state flips from 1 → 2 immediately when the interface goes down.
  • ~10 seconds later, bgp_oper_state follows from 1 → 2 (BGP hold-down timer).
  • bgp_prefixes_accepted drops to 0 on the same beat.
  • Interface traffic drops to 0 kb/s during each DOWN phase. Here's the chain of cause and effect:
    • rate() measures how fast the byte counter is going up.
    • During DOWN, no traffic is flowing through the interface, so no bytes get added to the counter.
    • The counter itself doesn't disappear — it just sits at whatever number it had reached when the interface went down.
    • When the interface comes back up, traffic starts flowing again and the counter picks up where it left off — no fake spike, no false alarm.
  • When the interface recovers, every gated series snaps back: bgp_oper_state → 1, prefix counters → 10. Dashboards go green within one scrape cycle.

Logs:

UPDOWN log lines start appearing in the live stream within seconds of the first down phase. Each line carries the same device, interface, and vendor_facility_process labels as the metrics — that label alignment is what makes the bridge exercise possible.

Alerts:

  • After ~30 seconds in the down state, check the Prometheus alerts page. You should see PeerInterfaceFlapping move from INACTIVE → PENDING → FIRING as the UPDOWN event count crosses the threshold and holds for for: 30s.
  • Once FIRING, switch to Alertmanager — the alert arrives there routed by its severity and category labels. In Part 3 you'll trace exactly what the webhook does with it.

Stop and notice. Everything you used today is on screen at the same time: a metric query (interface state), a causal chain (interface → BGP → prefixes), a log stream with matching labels, a recording rule feeding the alert expression, and an alert firing and routing. Each layer was a separate concept earlier in Part 1. Under pressure at 2am, this is the view you'll have open — and every piece of it is a query you now know how to write.

Stretch goals (optional — pick one if you have time)

  • Find the busiest interface in the last 5 minutes. Combine topk with rate() on interface_in_octets. Which interfaces show up?

    Solution — the query + what it returns
    topk(3, rate(interface_in_octets[5m]))

    Three rows, one per "busiest" interface across both devices:

    srl2 / ethernet-1/10    ~12,700 bytes/sec
srl2 / ethernet-1/1     ~12,700 bytes/sec
srl1 / ethernet-1/1     ~12,700 bytes/sec

    At rest the synthetic emitter ticks every healthy interface at roughly the same step_size, so the three winners are essentially tied — topk picks 3 of them somewhat arbitrarily. Drive a flap (nobs autocon5 flap-interface --device srl1 --interface ethernet-1/1) and the broken/flapping interface stops contributing during DOWN phases — the result list changes accordingly.

  • List every distinct severity level present in srl1 logs in the last hour. What does the lab actually seed?

    Solution — the query + three severity buckets

    Parse the lines with | json then aggregate by the parsed field:

    sum by (severity) (count_over_time({device="srl1"} | json [1h]))

    Three rows fall out:

    severity count (varies, ballpark)
    info ~120 (BGP state changes, link UP events)
    warn ~70 (broken peer retries, admin-up/oper-down events)
    error ~15 (BGP neighbor "connection refused" lines)

    The lab seeds three severity buckets on purpose — info is the baseline noise, warn is the steady-state broken-interface emission, error is what the broken peer actively produces. In a real network the distribution looks similar: most lines are routine, a fraction are warnings about expected state, and a smaller fraction are errors worth paging on.

  • Run the broken-peer query against srl2 only. Same shape as exercise 5 (the intent-vs-reality BGP query), but scoped to one device. Confirm you get exactly one row.

    Solution — the query + the one row it returns
    bgp_admin_state{device="srl2"} == 1
  and on (device, peer_address)
bgp_oper_state{device="srl2"} != 1

    Returns exactly one row:

    bgp_admin_state{device="srl2", peer_address="10.1.11.1", ...} = 1

    That's srl2's deliberately broken peer — admin says "should be up", oper says it isn't. Same shape as srl1's broken peer (10.1.99.2 from exercise 5), just on the SNMP-shape device. The intent-vs-reality pattern is device-shape-agnostic because the normalization step gives both pipelines the same metric names and labels.

  • Plot CPU and memory side by side. Two queries in one Explore panel — what should both lines look like at rest?

    Solution — the queries + expected ranges
    cpu_used{device="srl1"}

    memory_utilization{device="srl1"}

    Both metrics are sine waves the synthetic emitter produces:

    • cpu_used{device="srl1"} ≈ 10–40% (amplitude 15, offset 25, period 120s)
    • memory_utilization{device="srl1"} ≈ 34–50% (amplitude 8, offset 42, period 240s)

    Both lines sit comfortably below any operationally interesting threshold — the lab seeds these as "the box is healthy" baseline so you can compare them against the genuinely interesting interface/BGP signals. If either climbed into the 80–90% range, that'd be a "device itself is unhealthy" signal worth investigating (we ruled this out at the top of Act 2 in Advanced exactly for this reason).

  • Inspect the raw shape Telegraf normalizes. Compare the three layers of the pipeline directly — what does the same fact look like before Telegraf, after Telegraf, and after Prometheus has stored it?

    Solution — three URLs walking the same fact through three shapes

    Click each URL and grep for one specific metric:

    For one line of bgp_active_routes on srl2, you'll see roughly:

    Layer What it looks like
    Sonda raw (before Telegraf) bgpPeerInPrefixes{agent_host="srl2", bgpPeerRemoteAddr="10.1.11.1", ...} 10
    Telegraf /metrics (after rename) bgp_active_routes{collection_type="snmp", device="srl2", peer_address="10.1.11.1", ..., pipeline="telegraf"} 10
    Prometheus (after one more scrape) identical to the line above — Prometheus just stores it

    Same number (10), same physical fact (this peer has 10 active routes), three different shapes depending on which layer you sample at. The rename ruleset that bridges them lives in telegraf/telegraf-srl2.conf.toml — tag.source → device, bgpPeerRemoteAddr → peer_address, plus the metric-name rewrites. The point of the exercise is to convince yourself that "normalization" isn't a black box — it's a config file you can read.

What you took away

  • You now know what "normal" looks like in this network. That baseline is what every triage in your future is going to compare against.
  • Every metric is name + labels + value. Aggregations collapse labels you don't list.
  • Counters need rate(). The window inside the brackets controls smoothness.
  • Intent-vs-reality is two clauses joined by and on (...) — the workshop's broken peers are caught by exactly that shape.
  • Recording rules pre-compute expensive aggregations into new metric names (aggregation:metric:window). Query the recording rule, not the raw counter — it's faster and already aligned with the alert threshold.
  • Alert rules are just PromQL expressions plus a for: duration and a set of labels and annotations. When the expression returns results for longer than for:, the alert fires. The lifecycle is INACTIVE → PENDING → FIRING.
  • LogQL stream selectors look like PromQL but pick log streams. Line filters narrow inside those streams.
  • count_over_time({...}[N]) turns a log query into a metric — same pattern any LogQL alert rule uses.
  • Same labels on metrics and logs means correlation is one query change away. Metric tells you what; log tells you why.
  • A real incident moves through all three layers at once: the metric catches the anomaly first, the log explains the event, the alert fires when the anomaly persists. The capstone exercise walked you through that chain live.
  • Two normalization stories on this lab — collection_type=gnmi/snmp on metrics, pipeline=direct/vector on logs. The label that records the source pipeline exists for inspecting the normalization itself; default to pipeline-agnostic queries and reach for the label only when you're debugging the path, not the network.
