Workshop overview · Pre-flight

Welcome — here's the day

A four-hour, laptop-friendly workshop. You bring Docker; we bring the rest.

By lunchtime you'll have queried real-shaped telemetry, made a dashboard answer an operational question, watched alerts route through an automated workflow, and seen what an opt-in AI RCA step does next to that workflow.

~20% framing & guided demos, ~80% hands-on Whole stack runs locally No shared backend, no live network gear

FAQ

Do I need network engineering experience?

Helpful, not required. Every concept (BGP peering, interface state, syslog UPDOWN events) is framed before you query it.

Do I need to know Prometheus, Loki, or Grafana already?

A sketch-level idea of "metrics database" and "log database" is enough. Part 1 builds PromQL and LogQL from scratch against live data.

What if I've never used Docker?

You need Docker installed and running, but you don't need to write a Dockerfile. If docker ps works on your laptop, you're set. New to Docker? The Install Docker and uv page has per-platform install pointers.

Why do I need uv installed?

We use uv to install and run the workshop's nobs CLI — a thin wrapper that fronts every workshop command (up, down, status, alerts, flap-interface, and the rest). With uv set up the rest of the day flows through one-line commands instead of raw docker compose commands. The same Install page has the install one-liner.

What if my laptop is on Windows?

We recommend macOS or a Linux-based system — on Windows the workshop should run natively under WSL 2, but we haven't tested it there. Native Windows / PowerShell isn't supported.

How big is the stack?

Around 21 containers, ~5.5 GB of RAM, and ~5 GB of disk. The first nobs autocon5 up pulls 3–5 GB of images — that's the slow step. After that, restarts are fast.

Can I run this offline?

Yes, once images are pulled. The only outbound call during the workshop is the optional AI RCA step (needs a provider key and internet). If conference Wi-Fi melts, the lab keeps running.

Is anything sent to a remote service?

No, by default. All telemetry, alerts, and dashboards are local. The AI RCA step is opt-in (ENABLE_AI_RCA=false by default) and only calls OpenAI or Anthropic if you set a key in .env.

Why simulated devices instead of real SR Linux containers?

Real SR Linux containers need 4–6 GB of RAM each, which would price most laptops out of a multi-device lab. Sonda emits the same gNMI metric shapes and syslog events a real device would, so the queries you write here are the same ones you'd run against production. If you want the full lab with real containers, the companion repo is network-observability-lab.

Can I keep using this after the workshop?

Yes — fork the repo and the stack is yours. nobs autocon5 destroy cleanly tears it down when you're finished.

Before you arrive

Run the preflight from anywhere in the repo:

nobs preflight

It checks Docker, Compose v2, Python, RAM, free disk, and outbound reachability to ghcr.io, docker.io, and github.com. Resolve any [FAIL] lines before the workshop.

You also need:

• Docker (or Docker Desktop / Colima / Rancher Desktop) with Compose v2.
• uv to install and run the workshop's nobs CLI. Install with curl -LsSf https://astral.sh/uv/install.sh | sh. uv installs its own pinned Python, so a system Python isn't required.
• ~8 GB of free RAM and ~5 GB of free disk while the stack is running.

Bring it up

The very first time, in this order:

uv sync --all-packages          # install workspace deps into .venv/
uv run nobs setup               # bootstrap .env + preflight
uv run nobs autocon5 up         # first run pulls images, ~5–10 min
uv run nobs autocon5 status     # repeat until every row says 'ok'
uv run nobs autocon5 load-infrahub

Drop the prefix from inside the workshop directory

Examples below pin nobs autocon5 for clarity, but from inside workshops/autocon5/ you can drop the workshop name: nobs up, nobs status, nobs alerts resolve to the same commands via cwd auto-mount.

Once the stack is up and Infrahub is seeded, you'll have:

Service	URL	Notes
Grafana	http://localhost:3000	login admin / admin (or whatever you set in .env)
Prometheus	http://localhost:9090	targets, rules, query browser
Alertmanager	http://localhost:9093	active alerts + silences
Loki	http://localhost:3001	LogQL endpoint (queried from Grafana)
Infrahub	http://localhost:8000	source-of-truth UI + GraphQL playground
Prefect	http://localhost:4200	workflow runs in Part 3
Sonda HTTP API	http://localhost:8085	the synthetic telemetry control plane

When you're done:

nobs autocon5 down       # stop everything but keep volumes
nobs autocon5 destroy    # full reset (drops volumes too)

If anything misbehaves during the workshop, ask the instructor — they have the operator runbook in docs/troubleshooting.md.

What's actually running

In words: synthetic telemetry from sonda lands in Prometheus and Loki. Alerting rules in both stores route through Alertmanager into a FastAPI webhook, which fans out to a Prefect flow. The flow consults Infrahub for source-of-truth intent (is this peer expected up? is the device in maintenance?) before deciding to quarantine, skip, or just audit — and optionally runs an AI RCA against the same evidence bundle. Every decision is annotated back into Loki for the audit trail.

The telemetry shape (metric names, labels, log streams) is real — sonda emits the same patterns a Nokia SR Linux device would. That's why the queries, dashboards, and alerts you build look exactly like what you'd write against a production network.

Visual reference — the surfaces you'll be looking at

Light or dark theme follows your site preference where the source UI supports it (Grafana, Prefect). Infrahub ships a single theme.

Dashboards (Grafana)

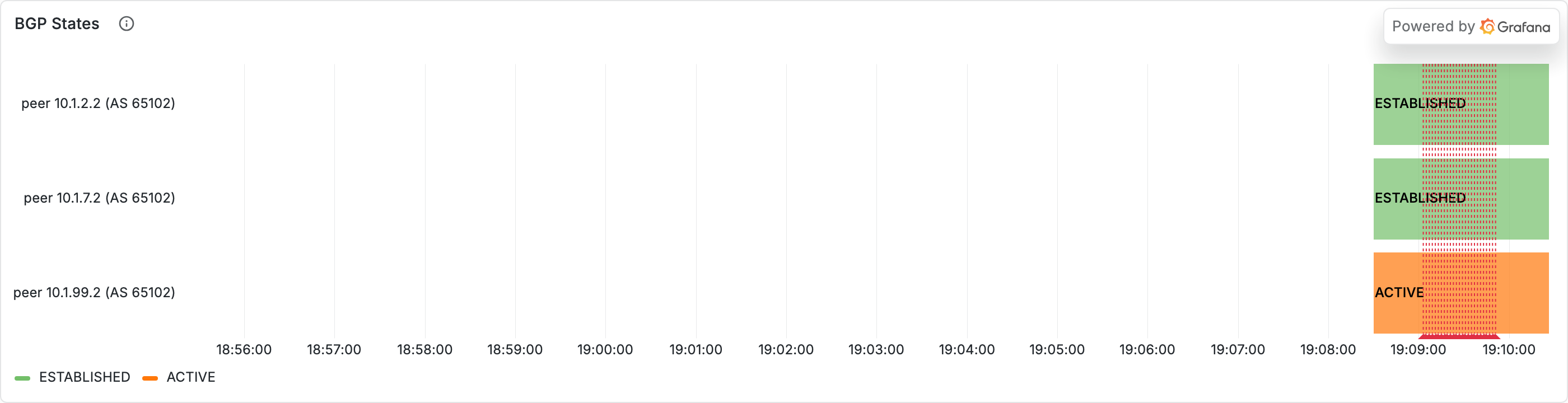

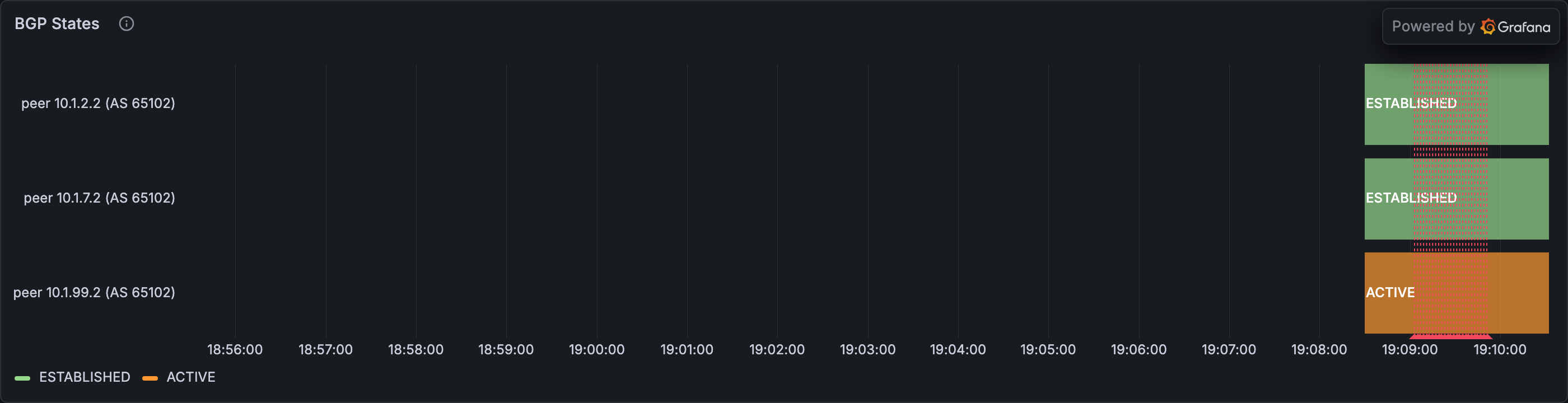

BGP States · Device Health (srl1) — three peers, two ESTABLISHED (green) and one stuck in ACTIVE (orange). That orange row is the deliberately-broken peer you find in Part 1 with a single intent-vs-reality query.

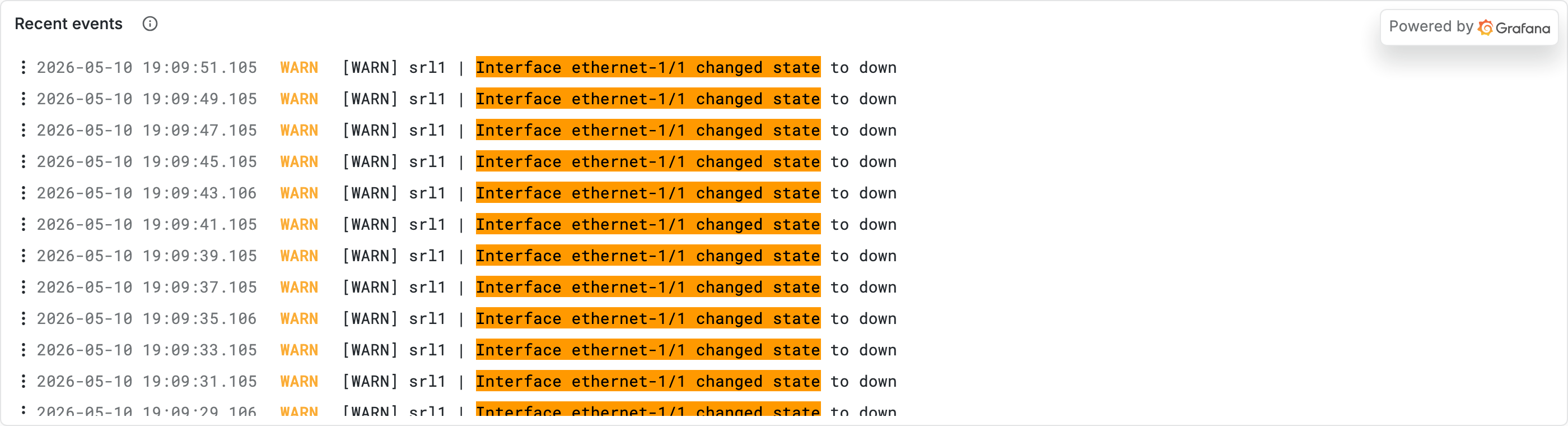

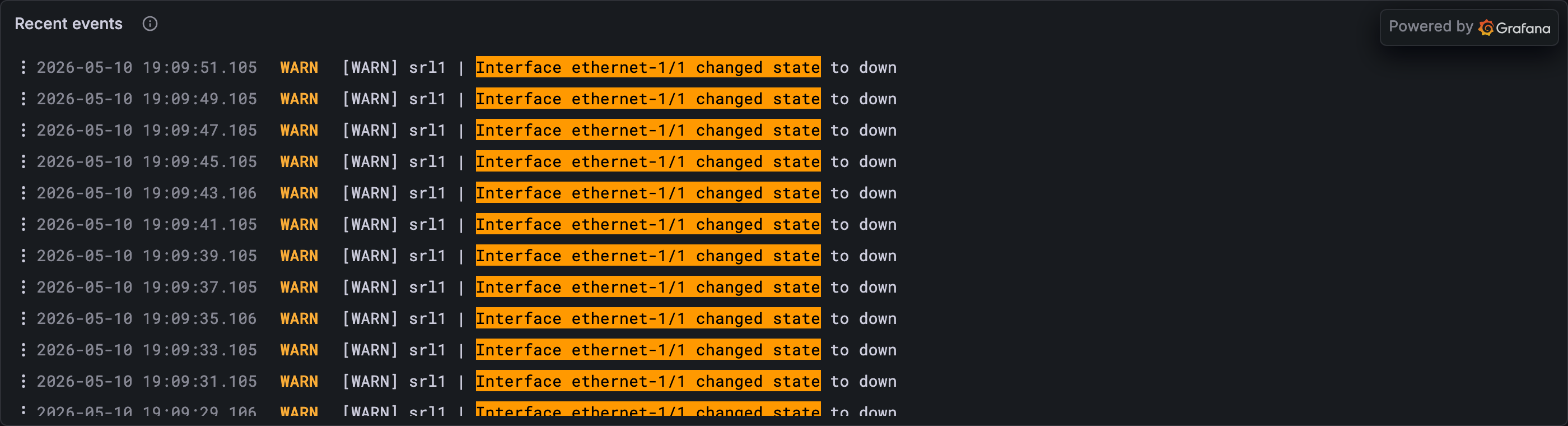

Recent events · Workshop Home — every interface UPDOWN log line shows up here, regardless of which device or pipeline emitted it. The feed you watch when you trigger flap-interface.

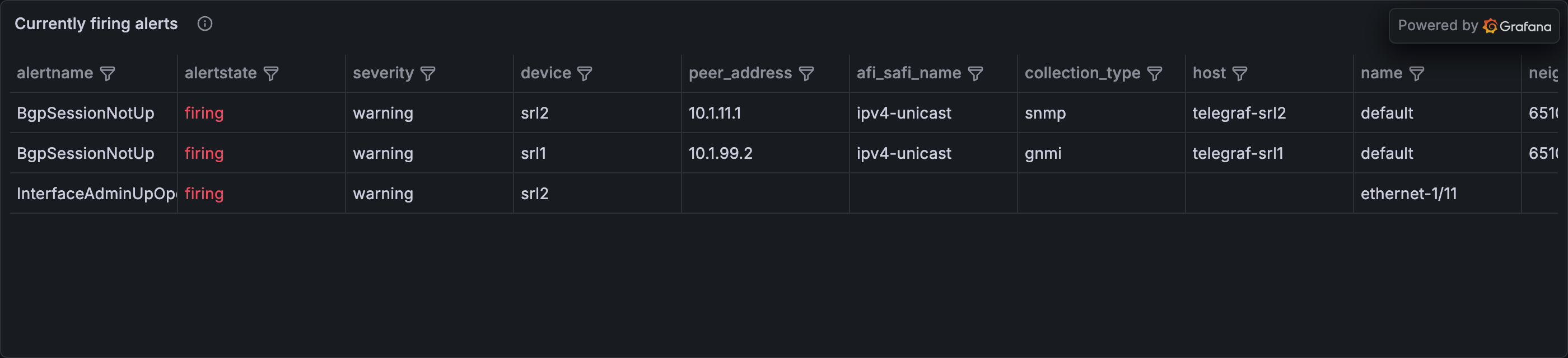

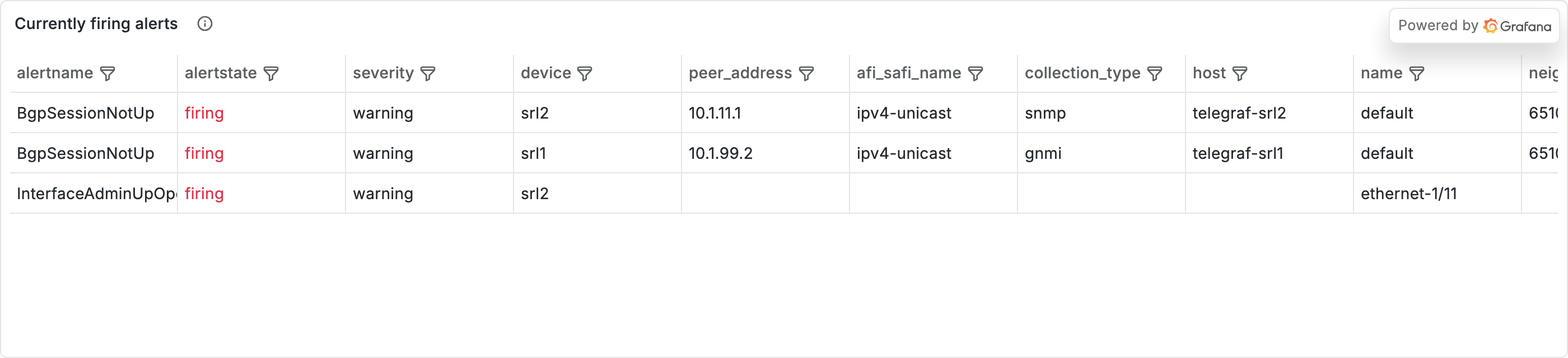

Currently firing alerts · Workshop Home — what Alertmanager has live right now. The input the Prefect automation reasons over in Part 3.

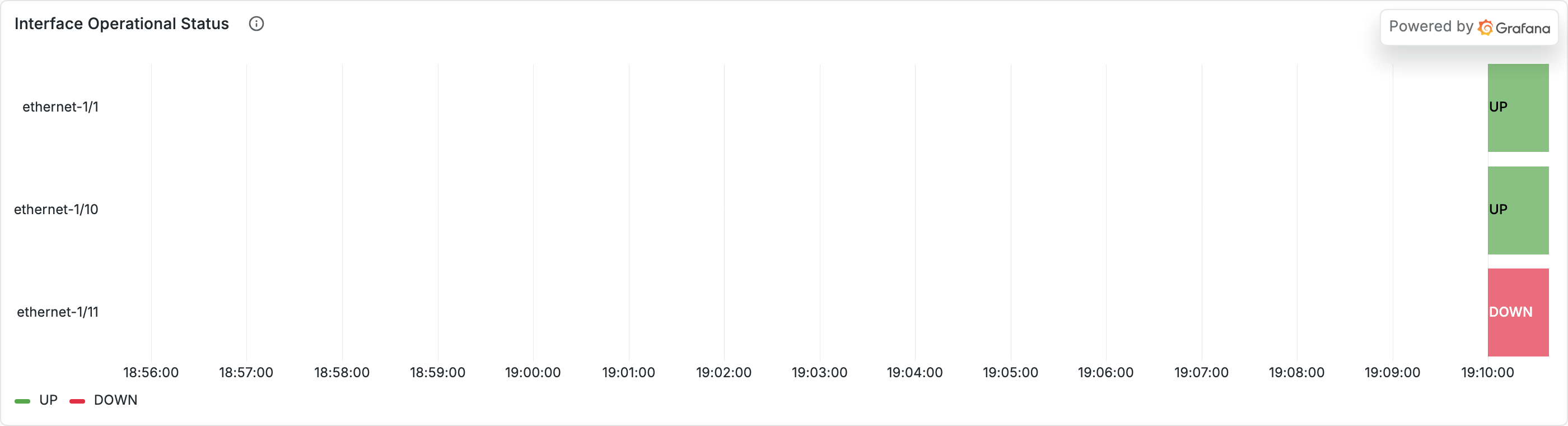

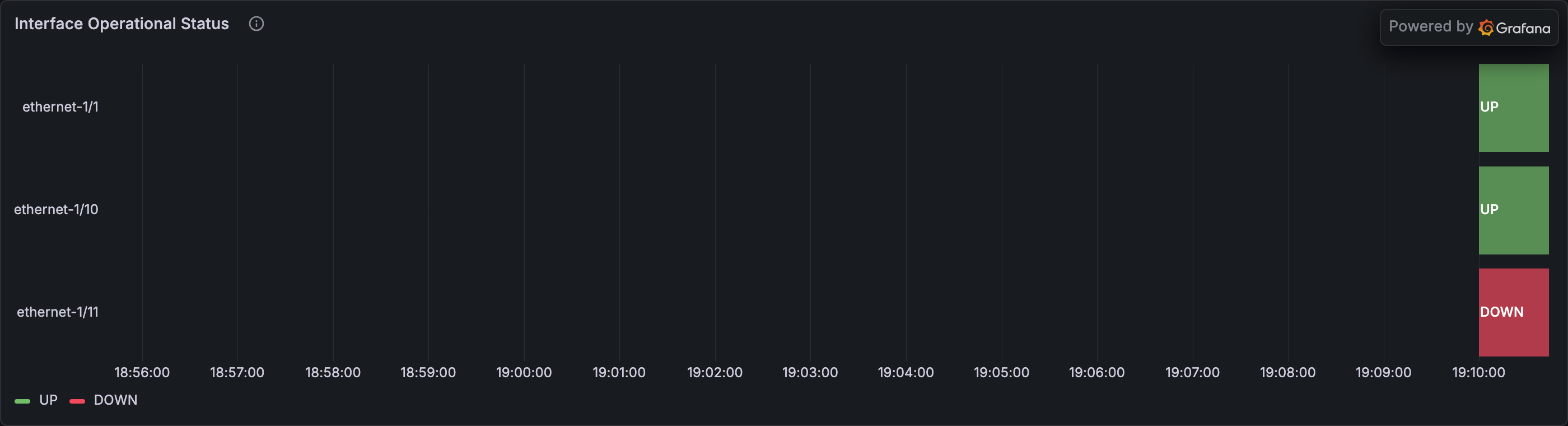

Interface Operational Status · Workshop Lab — the state timeline for srl1's interfaces. You'll learn to read this in Part 1 and add a flap-rate panel right next to it in Part 2.

Automation surfaces (Prefect, Infrahub)

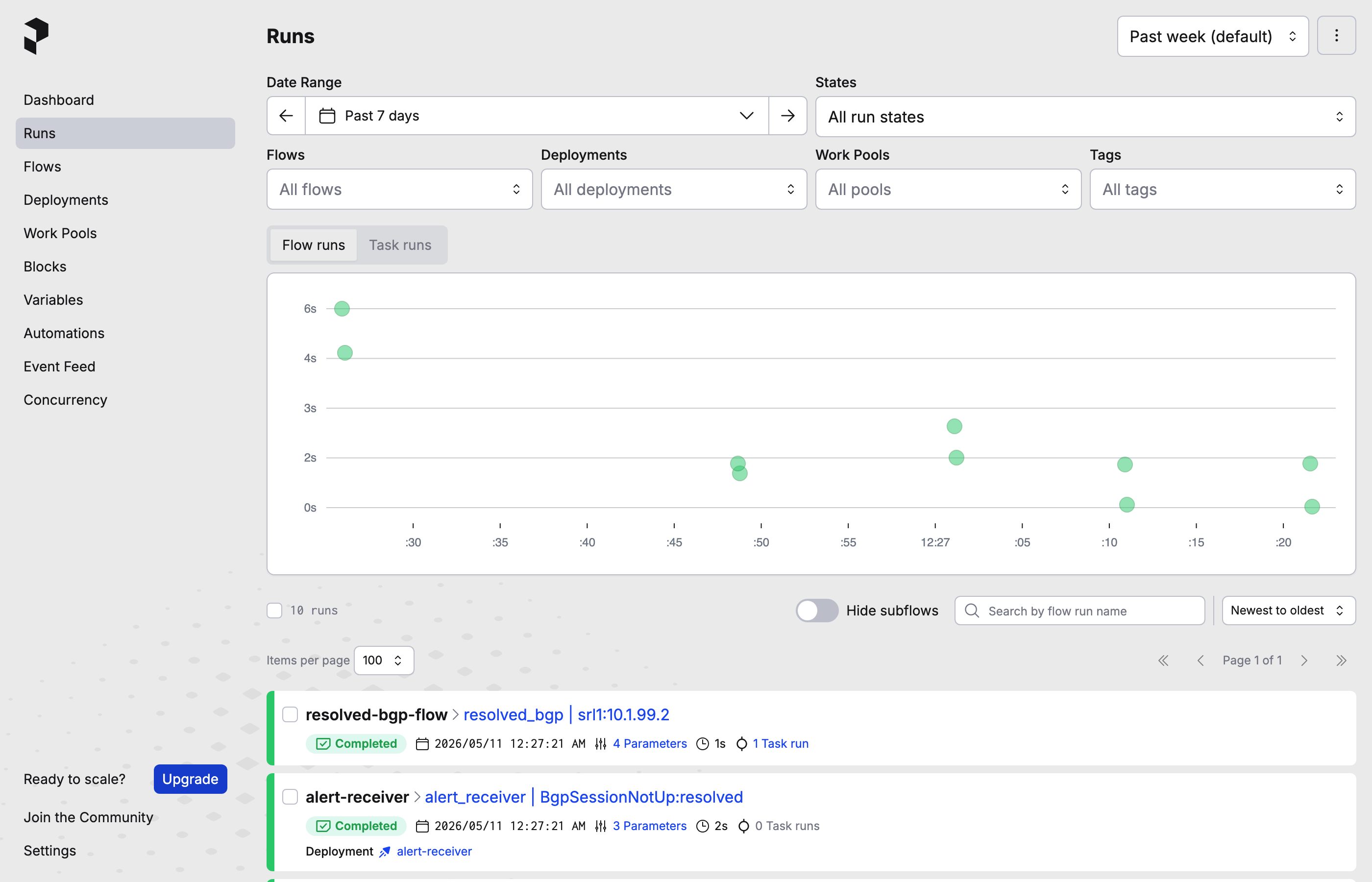

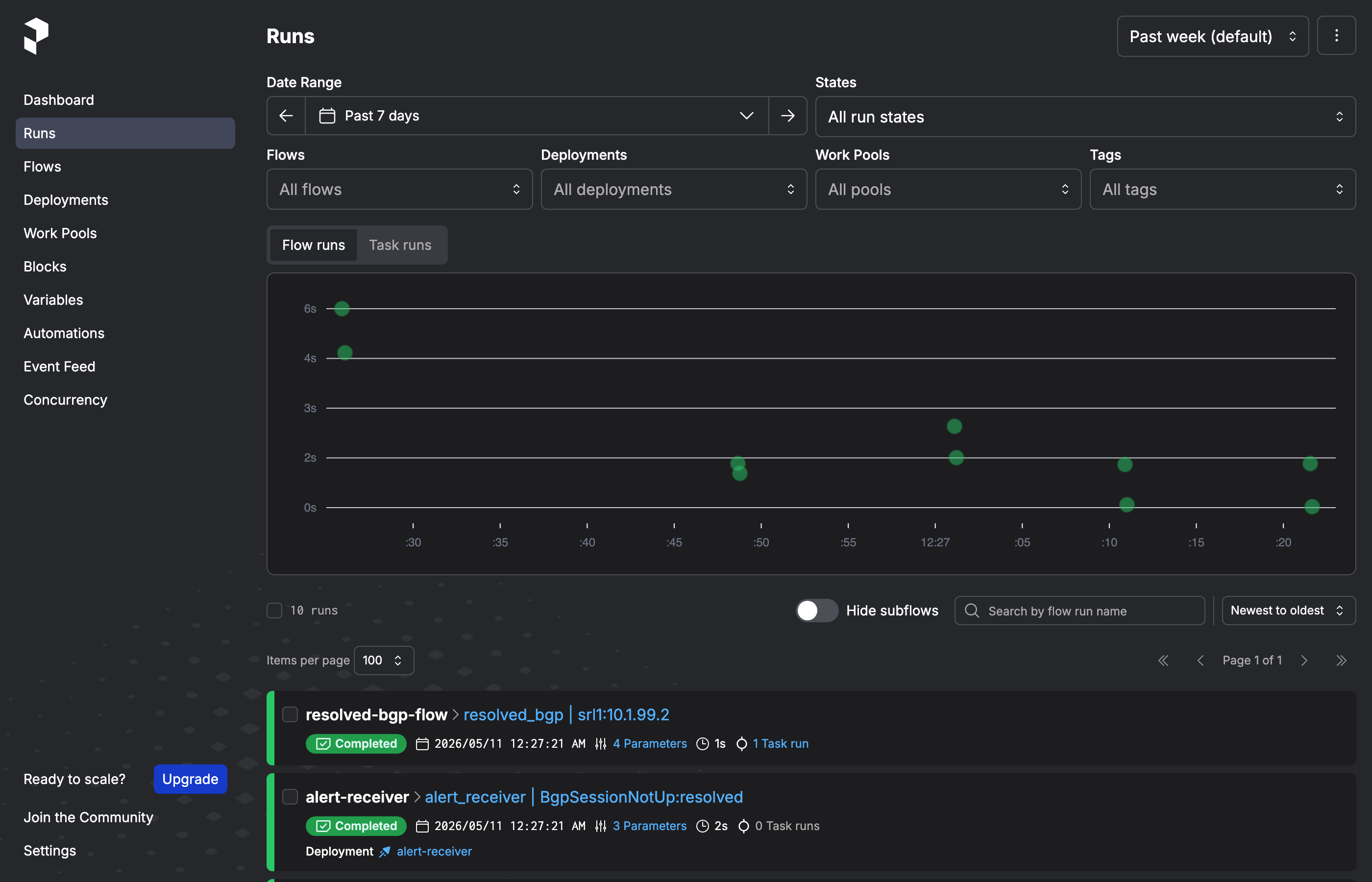

Prefect — Runs · `localhost:4200/runs`. Every alert payload the webhook handed off shows up here as a completed flow run. Click one and you see the task graph below.

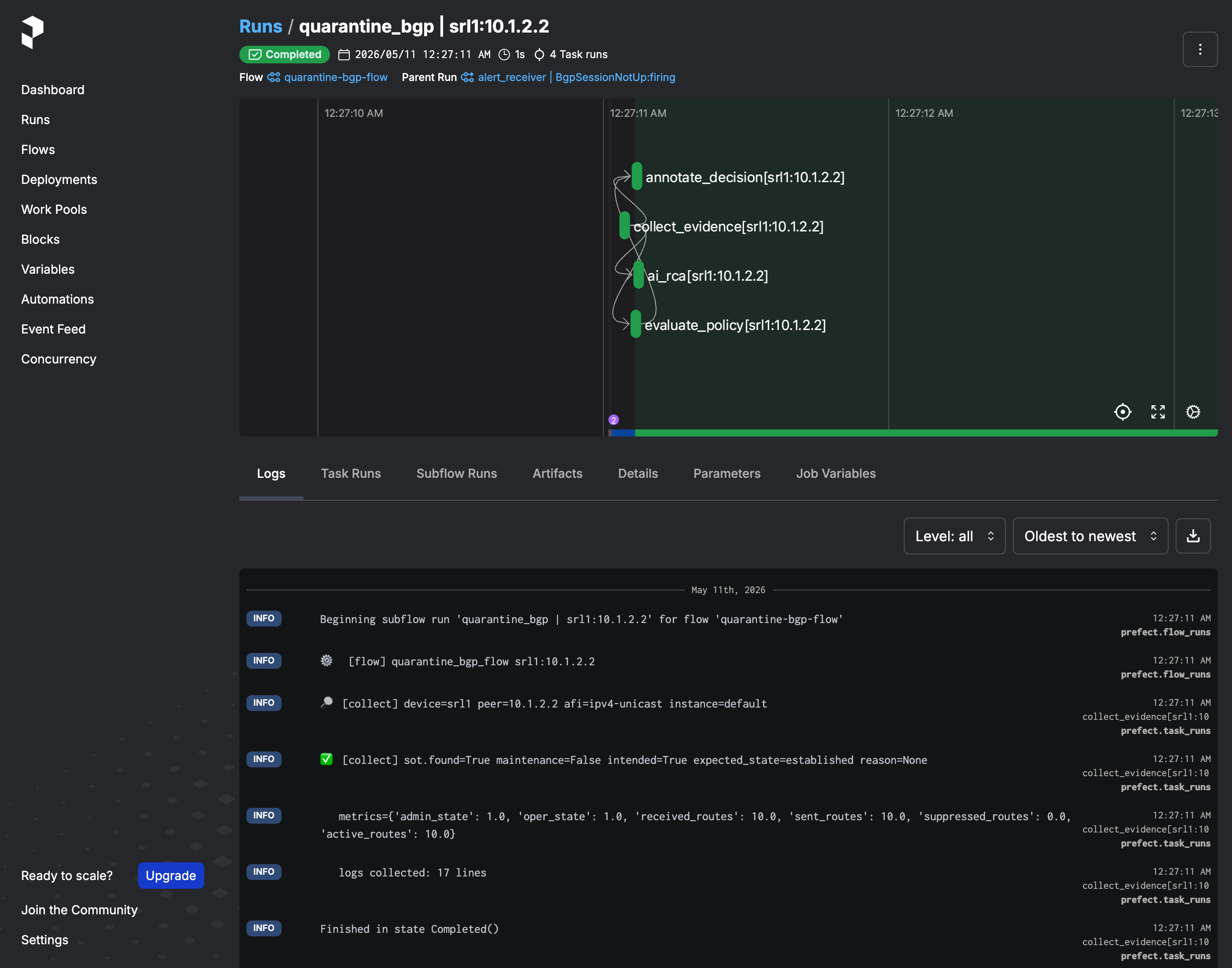

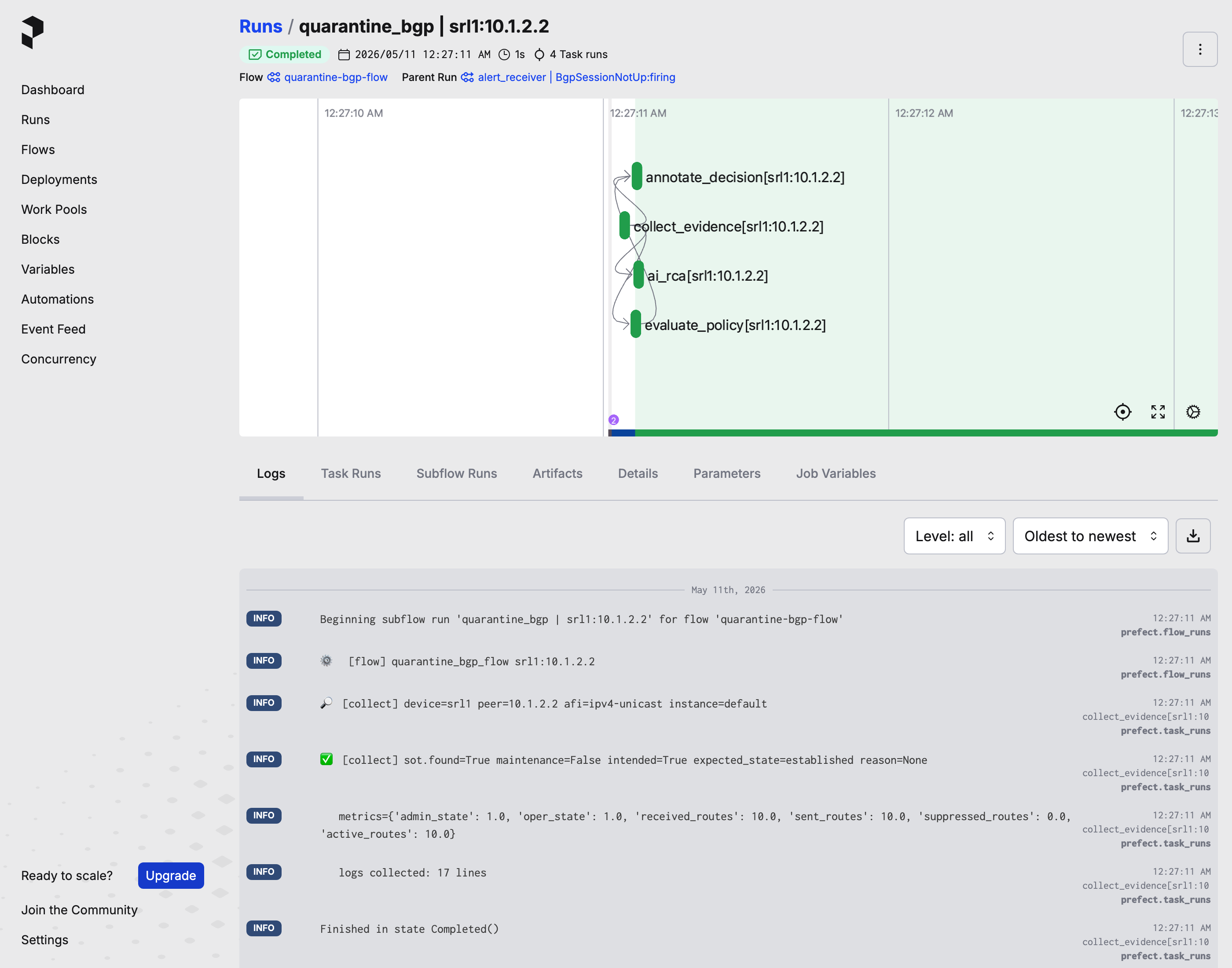

Prefect — Flow run detail · the task graph for `quarantine_bgp` (collect_evidence → evaluate_policy → annotate_decision → ai_rca → quarantine → annotate_action) with the per-task log feed underneath. The audit trail with a UI on top.

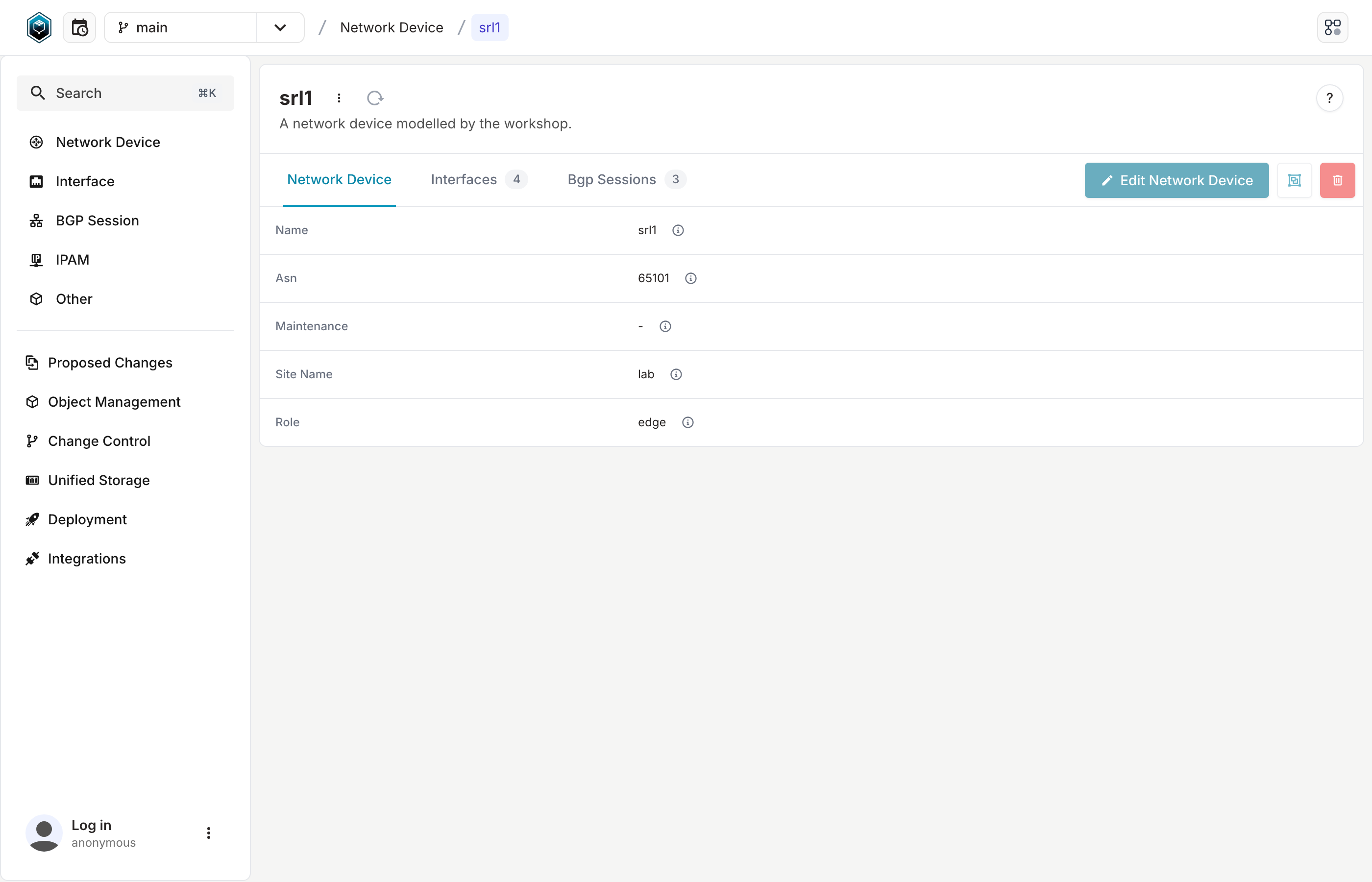

Infrahub — `WorkshopDevice/srl1` · `localhost:8000`. The intent the flow consults: ASN, Maintenance, Site Name, Role, plus Interfaces and BGP Sessions on the tabs above. Toggle Maintenance here and the next alert for this device is skipped by the policy.

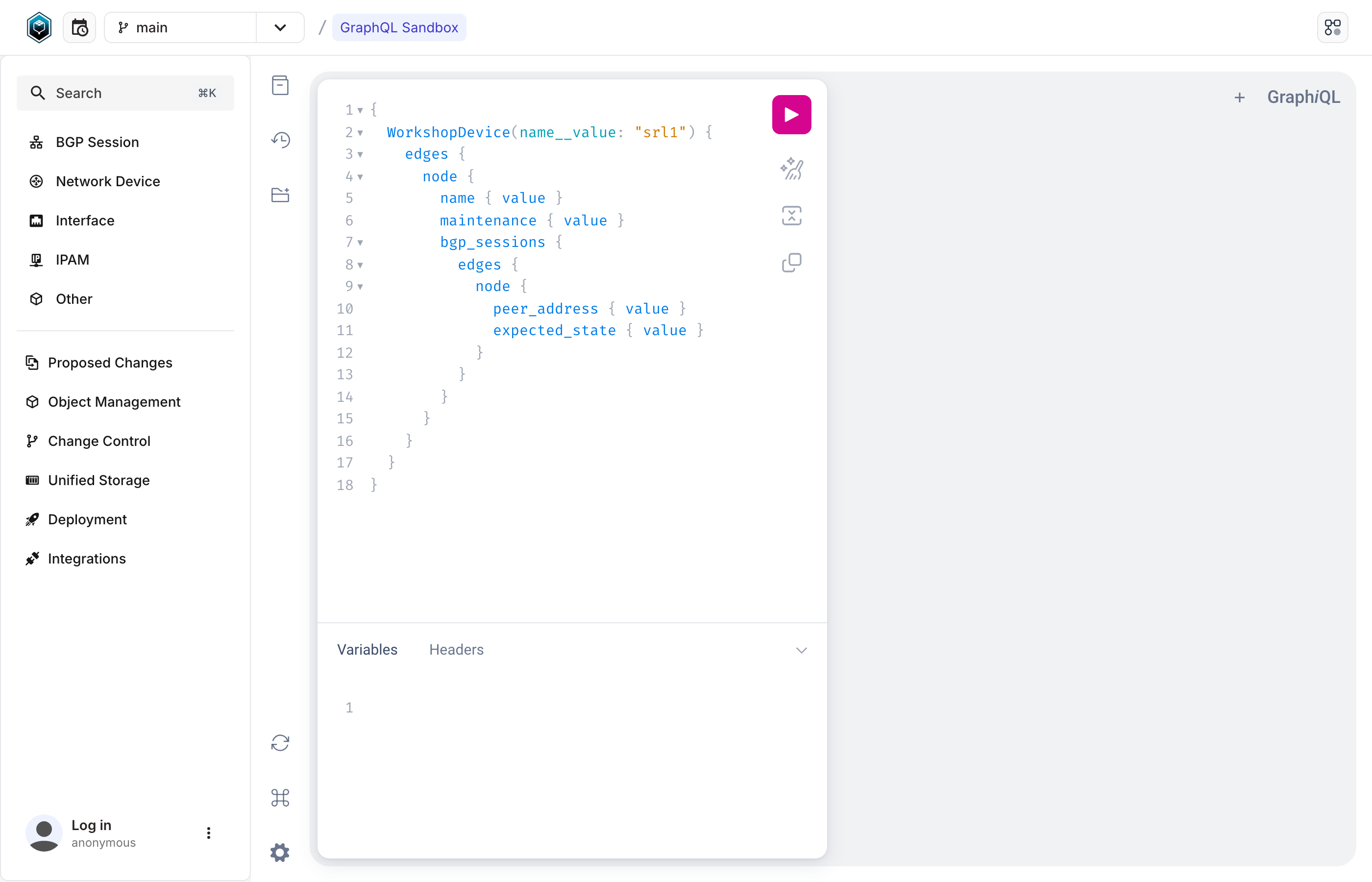

Infrahub — GraphQL Sandbox · `localhost:8000/graphql`. The exact `DeviceIntent` query the Prefect flow runs against Infrahub. No secret access — anyone can run this and see what the policy sees.

Driving an incident — nobs autocon5 flap-interface

The lab ships with one main incident: a BGP cascade triggered by an interface flap. Run nobs autocon5 flap-interface --device srl1 --interface ethernet-1/1 and over four minutes you'll watch the interface go down, the BGP session collapse on the hold-down timer, dashboards turn red, alerts fire, and the automation pick it up. Use --no-cascade for a flap that only trips PeerInterfaceFlapping without bringing a BGP session down — that's the variant Part 1 uses while you're still building the mental model.

How the cascade is wired (operator detail)

The cascade is one declarative sonda scenario. interface_oper_state is driven by a flap generator; BGP per-peer metrics and the UPDOWN log stream are gated on the interface state with a while: clause and a 10-second hold-down. When the gate closes, each gated entry writes one literal recovery sample so dashboards snap green within a scrape cycle. Default duration: 4 minutes (30s up / 60s down). The reference YAML lives at sonda/scenarios/cascade-incident.yaml; the CLI rebuilds the body in memory for any --device / --interface you pass.

The four parts

• Part 1 — Telemetry and queries

  ---

  Morning of your first deep day on the on-call rotation. Your senior buddy walks you through the lab's telemetry shape — what "normal" looks like, where the broken things hide, how to bridge a metric anomaly to a log line that explains it.

  Open Part 1

• Part 2 — Dashboards

  ---

  Mid-morning — a post-mortem email lands. Last night's page lost ten minutes because a flap-rate panel didn't exist yet. You build it now, with thresholds matching the actual alert rule, while the team is still in the room.

  Open Part 2

• Part 3 — Alerts, automation, AI

  ---

  Late morning, before lunch — a real alert lands while your senior narrates. Walk the four paths the workflow handles, toggle the AI RCA step, and decide which paths you'd trust the LLM narrative on at 2am.

  Open Part 3

• Advanced — End-to-end investigation

  ---

  The optional capstone. Hours after the senior signs off, your phone rings. Triage with PromQL and LogQL, contain with maintenance, fix the root cause, write the runbook. End-to-end, alone on the rotation.

  Open the capstone

For instructors and forkers — operator documentation

Maintainers, instructors, and anyone forking this workshop have a parallel set of operator docs in the repo:

• docs/ — operator documentation index.
• docs/env-lifecycle.md — who creates .env, who reads it, and the host-vs-container nuance.
• docs/troubleshooting.md — recurring failure modes and exact recovery commands.
• docs/repo-layout.md — what every directory contributes and where to look when tracing a flow.
• docs/data-pipelines.md — the two-pipeline pattern (direct vs shipper) for metrics and logs, with curl commands to inspect raw vs normalized shapes.
• docs/preflight.md — nobs autocon5 preflight regression check (data-shape waits, per-panel /api/ds/query, headless Grafana screenshots).
• infrahub/README.md — source-of-truth schema walkthrough.
